Bridge Management System is a system, which collects, saves and processes the data related to all the bridges, and enables to manage efficiently by daily management of inspection, maintenance and reinforcement.
Structure of the System
Structure of the System
Item, Contents
| Item |
Contents |
| Basic Data Management |
- D/B management of the Design documents, execution data and inspection & diagnose results.
- Daily Management of the bridge inspection diary
|
| Inspection Management |
- Management of the record on daily/close inspection and safety diagnosis.
|
| Mantenance/re-inforcement Management |
- Decision whether to carry out the maintenance/reinforcement work and priority.
- Management for the maintenance record
|
| Budget Management |
- Budget management for evaluation, maintenance and reinforcement
|
| Report data Management |
- Existing inspection and evaluation
- Career data
- Statistical data
|
| Manual Management |
- Inspection item by
- Manual update
|
| Inspection item by Manual update |
- User
- Existing user connection
- Password
|
| Measurement Management |
- Management of measuring limit
- Management of alarm
|

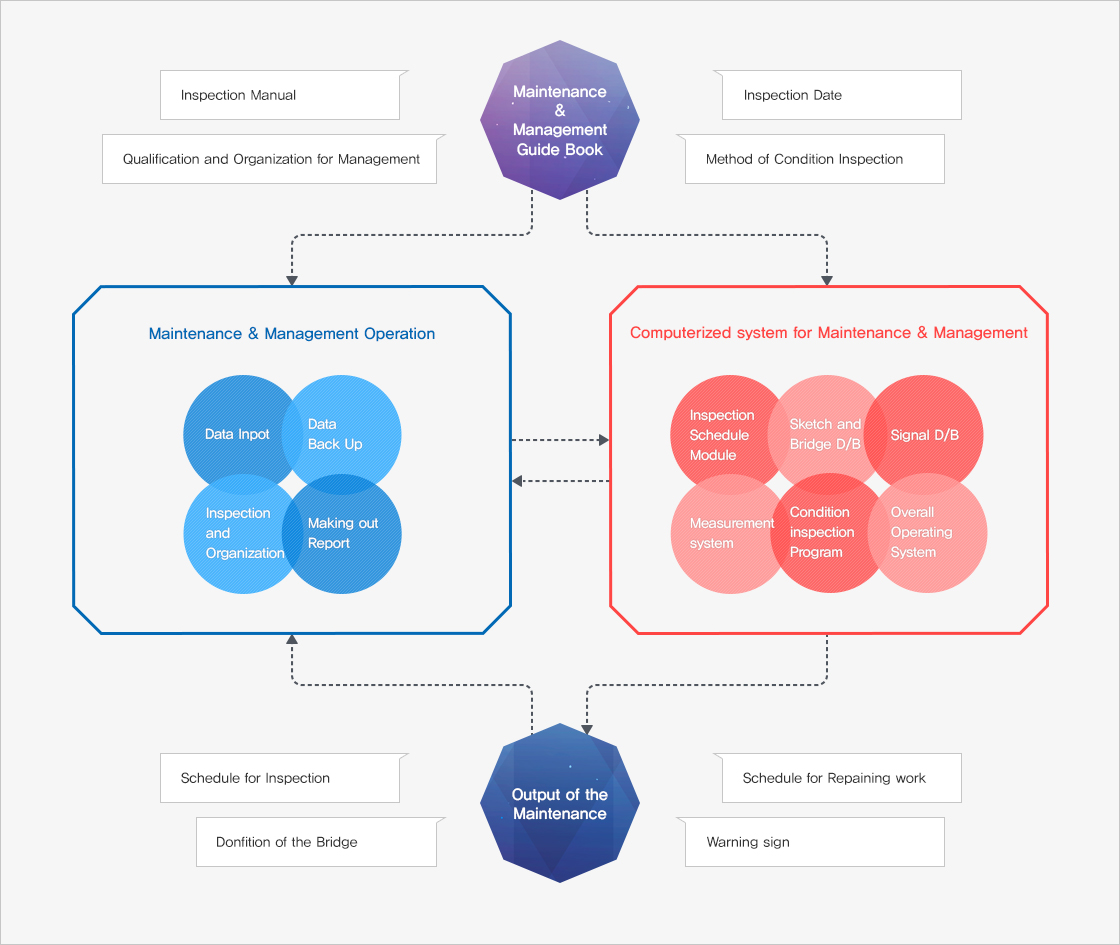

Basic Structure for Maintenance & Management System of Yeongjong & Banghwa Grand Bridge
Inspection Sequence According to the Computerized System
- System automatically makes out the schedule for inspection and indicates all inspection sequences.
- System has its own inspection manual for the use’s reference.
- System takes the form of questions & answers between operator and system.
- System presents operator with various graphic data.
- System has an knowledge base of organized professional knowledge.
- System has a program med algorithm, necessary for judgement ent of the bridge condition.
- System automatically writes reports after the inspection and save them in D/B.
- System provides an accurate inspection list to ensure objectivity.

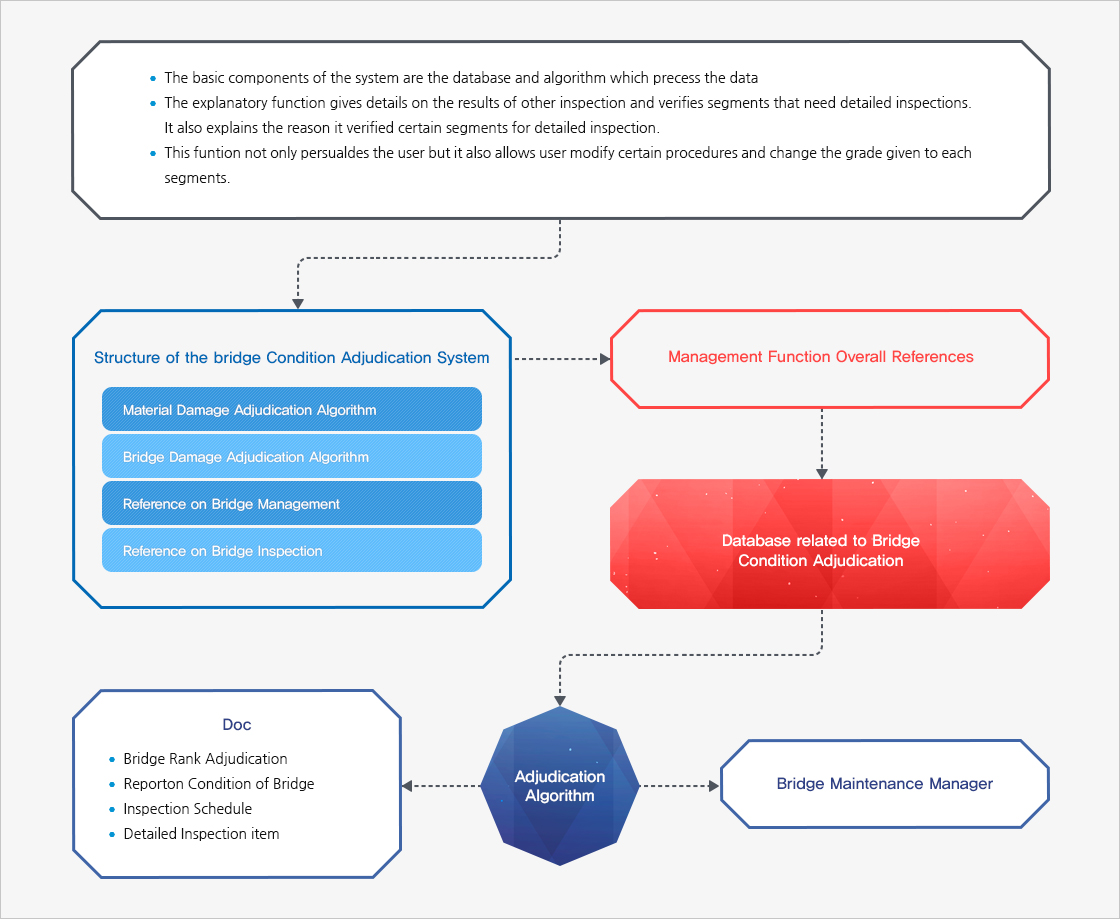

Structure of the Adjudication System of the Bridge Condition

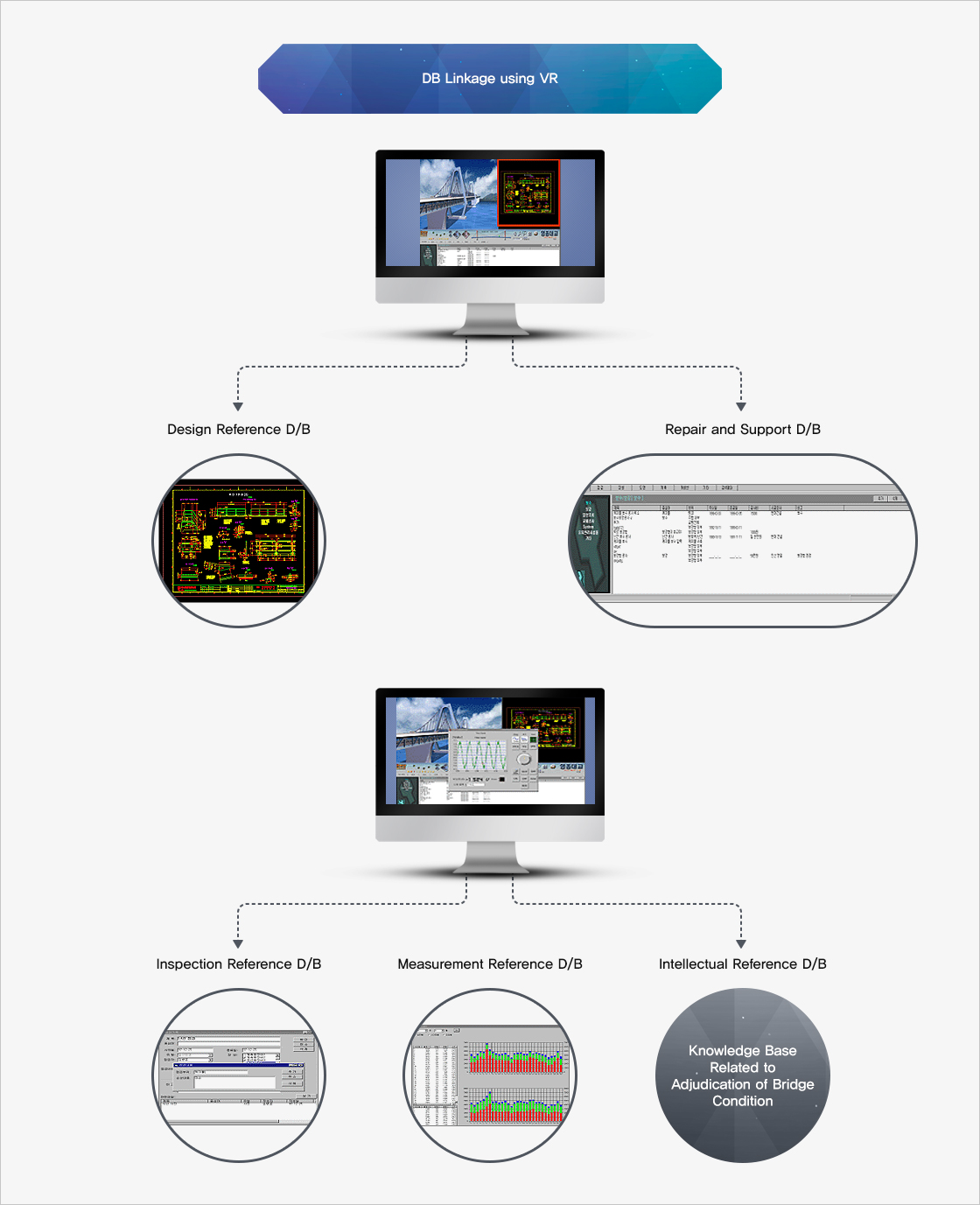

Three-dimensional inspection on bridge using virtual reality
- Create 3dimensional model of each bridge section.
- Control miltiplier so that one can enlarge and reduce the image.
- inspect all the segments of the bridge throgh virtual reality.
inspect the segments unobservable on the actual bridge.
- By using the syb-directory of the virtual reality.
carry out daily inspection on the brigde.
It is also possible to resolve problems through VR.
- Simplify the us age of VR.
The mouse pointer indicates thr very segment that the user wants to inspect.
- Pre-inspect the segment and the inspection date so that the managing personnel can keep abreast of the basic situation.
- Selection inside VR enables most of the date processing such as fundamental data base reseach and data for specific infomation about the bridge segemants.
Three-dimensional inspection on bridge using virtual reality
